Allowable bending stress steel sheet pile.
For wood an adjusted allowable stress f b is used directly.
The us army corps of engineers design of sheet pile walls engineer manual from 1994 recommends accounting for a safety factor for the allowable bending stress of 50 50.
Application of bending to specific sheet pile sections.
Helmet surface high local contact stresses improper pile guiding applying excessive bending forces obstructions in the ground etc.
While there are differences between these two methods the most important distinction is the interlock.
Then any hot rolled steel piling section meeting the required 75 8 k in ft.
Fy is steel yield strength fc is the 28 day strength of.
There are two things to be checked.
The strength of sheet piling to resist bending is a combination of the shape of the section and the material out of which it is made.
Stress analysis for the hz az combined wall system based on the allowable stress design method.
F a 26 ksi.
Hence f a 50 x ksi of the given steel grade therefore.
For reinforced concrete the stress term r is more complex as it must account for the limit state of both concrete in compression and steel in tension as well as the ratio of.
Nucor skyline supplies a wide variety of sheet pile from leading manufacturers.
The second is the effect of the deflection on what you are trying to protect.
Design moment would be considered equivalent.
In piling hot rolled steel sheet pile and cold formed steel sheet pile are two primary methods of manufacturing sheet pile.
En 1997 part 1 ec 7 1 for the geotechnical design and en 1993 part 5 ec 3 5 for the steel sheet piles and bearing piles.
It is known in some countries as the allowable stress design asd for the sheet piles.
A572 grade 50 50 ksi has an allowable bending stress f a 25 ksi s355 gp 52 ksi.
One is the structural capacity of the sheet pile in bending.
The allowable stress of the material is a function of the material itself.

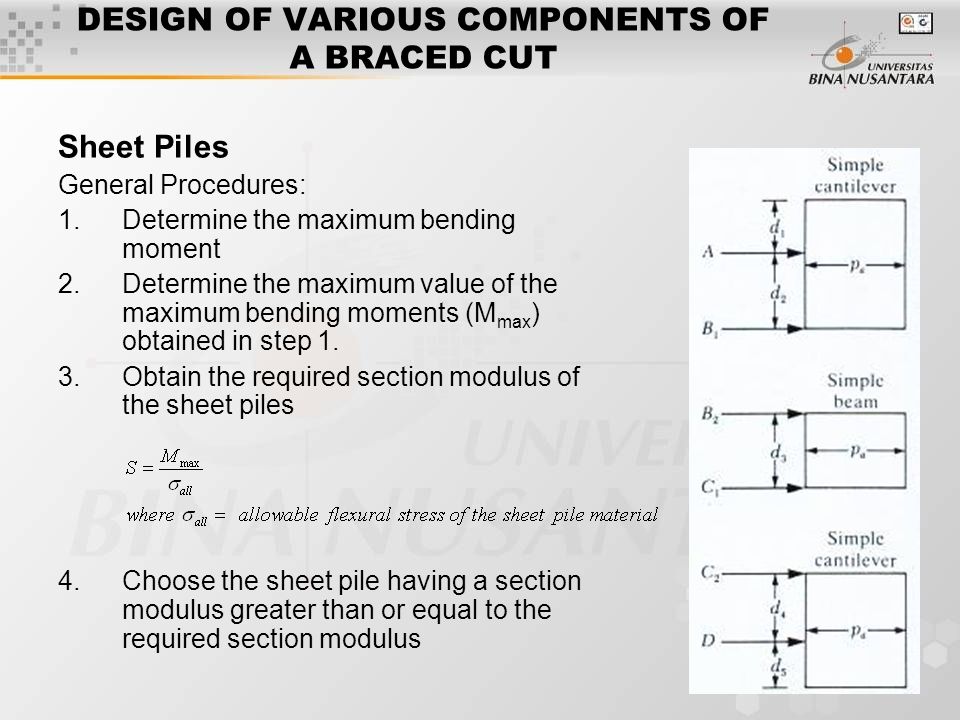

For example say in a section of plans which has 500 feet 152 m of wall length and a sheet piling length of 48 feet 14 6 m you require a minimum design moment of 75 8 k in ft 28 kn m m.
As for the allowable deflection.
However most experts agree that the material.
It allows the user to easily select a solution based on the bending moments and chosen global safety factor on the steel stresses the user can also prepare a basic material list for a straight retaining wall.
For steel the yield stress f y is used.
The latest eurocodes are based on a semi probabilistic approach.

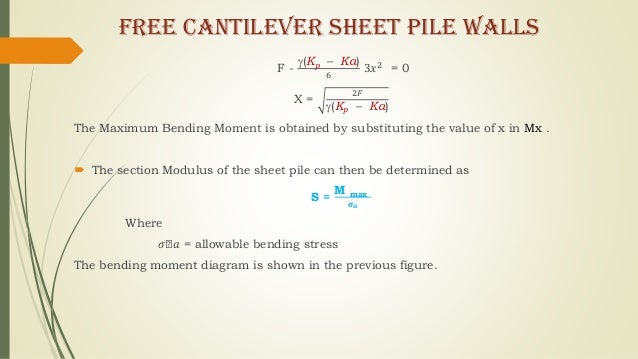

Simply calculate the bending moment convert that the the stress in the outer fibers and compare to the allowable stress for the steel.
